石英晶體振蕩器
- 編號：7873021
- 頻率：200MHZ
- 尺寸：7.0*5.0mm
思佳訊差分輸出晶振,531FA200M000DGR,Si531數字視頻晶振
思佳訊差分輸出晶振,531FA200M000DGR,Si531數字視頻晶振，尺寸7050mm,頻率200MHZ，輸出邏輯LVDS，電壓2.5V，頻率穩定性50ppm,Skyworks有源晶振，時鐘晶體振蕩器，OSC差分晶振，貼片差分振蕩器，LVDS差分晶振，差分晶體...
思佳訊差分輸出晶振,531FA200M000DGR,Si531數字視頻晶振，尺寸7050mm,頻率200MHZ，輸出邏輯LVDS，電壓2.5V，頻率穩定性50ppm,Skyworks有源晶振，時鐘晶體振蕩器，OSC差分晶振，貼片差分振蕩器，LVDS差分晶振，差分晶體振蕩器，有源差分晶振，7050mm差分振蕩器，石英差分晶體振蕩器，低功耗差分振蕩器，低損耗差分晶振，低電壓差分振蕩器，低抖動差分晶振，低相位差分晶振，低相噪差分晶振，測試測量差分晶振，交換機差分晶振，多媒體設備差分晶振，通信模塊差分晶振，網絡應用差分晶振，數字視頻差分晶振，娛樂設備差分晶振，具有低相位低相噪的特點.
有源晶振產品很適合用于測試測量，交換機，多媒體設備，通信模塊，網絡應用，數字視頻，娛樂設備等應用場景。思佳訊差分輸出晶振,531FA200M000DGR,Si531數字視頻晶振.
思佳訊差分輸出晶振,531FA200M000DGR,Si531數字視頻晶振 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||||
| Supply Voltage1 | V DD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||||||||||||||||||||
| 1.8 V option | 1.71 | 1.8 | 1.89 | V | ||||||||||||||||||||
| Supply Current | IDD |
Output enabled LVPECL CML LVDS CMOS |
— — — — |
111 99 90 81 |
121 108 98 88 |
mA | ||||||||||||||||||
| Tristate mode | — | 60 | 75 | mA | ||||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.75 x V DD | — | — | V | |||||||||||||||||||
| VIL | — | — | 0.5 | V | ||||||||||||||||||||
| Operating Temperature Range | TA | –40 | — | 85 | ºC | |||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||||
| Nominal Frequency1,2 | fO | LVPECL/LVDS/CML | 200 | MHz | ||||||||||||||||||||
| CMOS | 10 | — | 160 | MHz | ||||||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||||
| Temperature Stability1,3 |
–7 –20 –50 |
— |
+7 +20 +50 |
ppm | ||||||||||||||||||||
| Aging | fa | Frequency drift over first year | — | — | ±3 | ppm | ||||||||||||||||||
|
Frequency drift over 20 year life |
— | — | ±10 | ppm | ||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||||
| Total Stability | Temp stability = ±7 ppm | — | — | ±20 | ppm | |||||||||||||||||||
| Temp stability = ±20 ppm | — | — | ±31.5 | ppm | ||||||||||||||||||||
| Temp stability = ±50 ppm | ±61.5 | ppm | ||||||||||||||||||||||
| Powerup Time4 | tOSC | 10 | ms | |||||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||||
| LVPECL Output Option1 | VO | mid-level | V DD – 1.42 | — | V DD – 1.25 | V | ||||||||||||||||||
| VOD | swing (diff) | 1.1 | — | 1.9 | VPP | |||||||||||||||||||
| VSE | swing (single-ended) | 0.55 | — | 0.95 | VPP | |||||||||||||||||||
| LVDS Output Option2 | VO | mid-level | 1.125 | 1.20 | 1.275 | V | ||||||||||||||||||
| VOD | swing (diff) | 0.5 | 0.7 | 0.9 | VPP | |||||||||||||||||||
| CML Output Option2 | VO | 2.5/3.3 V option mid-level | V DD – 1.30 | V | ||||||||||||||||||||
| 1.8 V option mid-level | V DD – 0.36 | V | ||||||||||||||||||||||
| VOD | 2.5/3.3 V option swing (diff) | 1.10 | 1.50 | 1.90 | VPP | |||||||||||||||||||
| 1.8 V option swing (diff) | 0.35 | 0.425 | 0.50 | VPP | ||||||||||||||||||||
| CMOS Output Option3 | V OH | I OH= 32 mA | 0.8 x V DD | V DD | V | |||||||||||||||||||
| VOL | I OL= 32 mA | 0.4 | V | |||||||||||||||||||||
| Rise/Fall time (20/80%) | tR,t F | LVPECL/LVDS/CML | 350 | ps | ||||||||||||||||||||
| CMOS with CL= 15 pF | 1 | ns | ||||||||||||||||||||||
| Symmetry (duty cycle) | SYM |
LVPECL: (diff) LVDS: CMOS: |
V DD – 1.3 V 1.25 V (diff) V DD/2 |
45 | 55 | % | ||||||||||||||||||

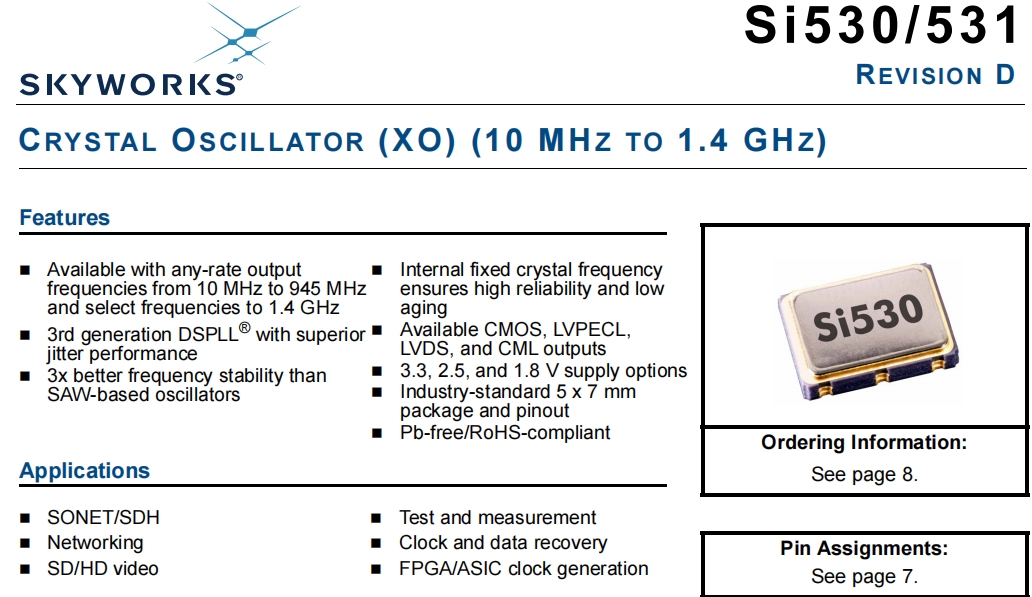

思佳訊差分輸出晶振,531FA200M000DGR,Si531數字視頻晶振
產品特性：
可用于任何速率輸出頻率從10MHz到945MHz
并選擇1.4 GHz的頻率
具有卓越性能的第三代DSPLL®抖動性能
頻率穩定性比SAW振蕩器
內部固定晶體頻率確保高可靠性和低成本變老
可用的CMOS、LVPECL、LVDS和CML輸出
3.3、2.5和1.8 V電源選項
行業標準5x7mm包裝和引腳
無鉛/符合RoHS
并選擇1.4 GHz的頻率
具有卓越性能的第三代DSPLL®抖動性能
頻率穩定性比SAW振蕩器
內部固定晶體頻率確保高可靠性和低成本變老
可用的CMOS、LVPECL、LVDS和CML輸出
3.3、2.5和1.8 V電源選項
行業標準5x7mm包裝和引腳
無鉛/符合RoHS
| Mfr Part # | Mfr | Description | Series | Frequency |
| 531SB100M000DG | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si531 | 100 MHz |
| 531SB104M000DG | Skyworks有源晶振 | XTAL OSC XO 104.0000MHZ LVDS SMD | Si531 | 104 MHz |
| 531SB104M166DG | Skyworks有源晶振 | XTAL OSC XO 104.1660MHZ LVDS SMD | Si531 | 104.166 MHz |
| 531SB50M0000DG | Skyworks有源晶振 | XTAL OSC XO 50.0000MHZ LVDS SMD | Si531 | 50 MHz |
| 531SB72M0000DG | Skyworks有源晶振 | XTAL OSC XO 72.0000MHZ LVDS SMD | Si531 | 72 MHz |
| 531SB86M0000DG | Skyworks有源晶振 | XTAL OSC XO 86.0000MHZ LVDS SMD | Si531 | 86 MHz |
| 531AB110M000DG | Skyworks有源晶振 | XTAL OSCILLATOR | Si531 | 110 MHz |
| 531AB004683DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED | Si531 | 54.1333 MHz |
| 531BB12M1000DG | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si531 | 12.1 MHz |
| 531EC150M000DG | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVPECL | Si531 | 150 MHz |
| 531FC153M600DG | Skyworks有源晶振 | XTAL OSC XO 153.6000MHZ LVDS SMD | Si531 | 153.6 MHz |
| 531FC161M797DG | Skyworks有源晶振 | XTAL OSC XO 161.7970MHZ LVDS SMD | Si531 | 161.797 MHz |
| 531FC178M984DG | Skyworks有源晶振 | XTAL OSC XO 178.9840MHZ LVDS SMD | Si531 | 178.984 MHz |
| 531NC161M132DG | Skyworks有源晶振 | XTAL OSC XO 161.1320MHZ LVDS SMD | Si531 | 161.132 MHz |
| 531FA200M000DGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVDS SMD | Si531 | 200 MHz |
| 531AA000278DGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si531 | 156.253906 MHz |
| 531BA000185DGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si531 | 161.132812 MHz |
| 531BA004659DGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si531 | 161.13282 MHz |
| 531FA205M000DGR | Skyworks有源晶振 | XTAL OSCILLATOR | Si531 | 205 MHz |
| 531FA148M350DGR | Skyworks有源晶振 | DIFFERENTIAL/SINGLE-ENDED; SINGL | Si531 | 148.35 MHz |
| 531AA000115DGR | Skyworks有源晶振 | XTAL OSC XO 115.0000KHZ LVPECL | Si531 | 115 kHz |
| 531AA000166DGR | Skyworks有源晶振 | XTAL OSC XO 166.0000KHZ LVPECL | Si531 | 166 kHz |
| 531AA000173DGR | Skyworks有源晶振 | XTAL OSC XO 173.0000KHZ LVPECL | Si531 | 173 kHz |
| 531AA132M812DGR | Skyworks有源晶振 | XTAL OSC XO 132.8120MHZ LVPECL | Si531 | 132.812 MHz |
| 531AA133M000DGR | Skyworks有源晶振 | XTAL OSC XO 133.0000MHZ LVPECL | Si531 | 133 MHz |
| 531AA133M330DGR | Skyworks有源晶振 | XTAL OSC XO 133.3300MHZ LVPECL | Si531 | 133.33 MHz |
| 531AA133M333DGR | Skyworks有源晶振 | XTAL OSC XO 133.3330MHZ LVPECL | Si531 | 133.333 MHz |
| 531AA135M000DGR | Skyworks有源晶振 | XTAL OSC XO 135.0000MHZ LVPECL | Si531 | 135 MHz |
| 531AA144M000DGR | Skyworks有源晶振 | XTAL OSC XO 144.0000MHZ LVPECL | Si531 | 144 MHz |
| 531AA150M000DGR | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVPECL | Si531 | 150 MHz |
| 531AA151M563DGR | Skyworks有源晶振 | XTAL OSC XO 151.5630MHZ LVPECL | Si531 | 151.563 MHz |
| 531AA155M520DGR | Skyworks差分晶振 | XTAL OSC XO 155.5200MHZ LVPECL | Si531 | 155.52 MHz |
| 531AA156M250DGR | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVPECL | Si531 | 156.25 MHz |
| 531AA156M251DGR | Skyworks有源晶振 | XTAL OSC XO 156.2510MHZ LVPECL | Si531 | 156.251 MHz |
| 531AA156M274DGR | Skyworks有源晶振 | XTAL OSC XO 156.2740MHZ LVPECL | Si531 | 156.274 MHz |
| 531AA159M375DGR | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVPECL | Si531 | 159.375 MHz |
| 531AA160M938DGR | Skyworks有源晶振 | XTAL OSC XO 160.9380MHZ LVPECL | Si531 | 160.938 MHz |
| 531AA166M667DGR | Skyworks有源晶振 | XTAL OSC XO 166.6670MHZ LVPECL | Si531 | 166.667 MHz |
| 531AA167M332DGR | Skyworks有源晶振 | XTAL OSC XO 167.3320MHZ LVPECL | Si531 | 167.332 MHz |
| 531AA172M500DGR | Skyworks有源晶振 | XTAL OSC XO 172.5000MHZ LVPECL | Si531 | 172.5 MHz |
| 531AA175M000DGR | Skyworks有源晶振 | XTAL OSC XO 175.0000MHZ LVPECL | Si531 | 175 MHz |
| 531AA187M500DGR | Skyworks有源晶振 | XTAL OSC XO 187.5000MHZ LVPECL | Si531 | 187.5 MHz |
| 531AA194M000DGR | Skyworks有源晶振 | XTAL OSC XO 194.0000MHZ LVPECL | Si531 | 194 MHz |
| 531AA200M000DGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVPECL | Si531 | 200 MHz |
| 531AA206M000DGR | Skyworks有源晶振 | XTAL OSC XO 206.0000MHZ LVPECL | Si531 | 206 MHz |
| 531AA212M500DGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVPECL | Si531 | 212.5 MHz |
| 531BA000174DGR | Skyworks有源晶振 | XTAL OSC XO 174.0000KHZ LVDS SMD | Si531 | 174 kHz |
| 531BA135M000DGR | Skyworks有源晶振 | XTAL OSC XO 135.0000MHZ LVDS SMD | Si531 | 135 MHz |
| 531BA148M500DGR | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si531 | 148.5 MHz |
| 531BA150M000DGR | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si531 | 150 MHz |
| 531BA155M520DGR | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si531 | 155.52 MHz |
| 531BA156M250DGR | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si531 | 156.25 MHz |
| 531BA159M375DGR | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVDS SMD | Si531 | 159.375 MHz |
| 531BA160M000DGR | Skyworks有源晶振 | XTAL OSC XO 160.0000MHZ LVDS SMD | Si531 | 160 MHz |
| 531BA160M250DGR | Skyworks有源晶振 | XTAL OSC XO 160.2500MHZ LVDS SMD | Si531 | 160.25 MHz |
| 531BA161M133DGR | Skyworks有源晶振 | XTAL OSC XO 161.1330MHZ LVDS SMD | Si531 | 161.133 MHz |
| 531BA166M000DGR | Skyworks有源晶振 | XTAL OSC XO 166.0000MHZ LVDS SMD | Si531 | 166 MHz |
| 531BA204M800DGR | Skyworks有源晶振 | XTAL OSC XO 204.8000MHZ LVDS SMD | Si531 | 204.8 MHz |
| 531BA212M500DGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | Si531 | 212.5 MHz |
| 531EA133M333DGR | Skyworks有源晶振 | XTAL OSC XO 133.3330MHZ LVPECL | Si531 | 133.333 MHz |
| 531EA148M500DGR | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVPECL | Si531 | 148.5 MHz |
| 531EA155M520DGR | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVPECL | Si531 | 155.52 MHz |
| 531EA156M000DGR | Skyworks有源晶振 | XTAL OSC XO 156.0000MHZ LVPECL | Si531 | 156 MHz |
| 531EA156M250DGR | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVPECL | Si531 | 156.25 MHz |
| 531EA175M000DGR | Skyworks有源晶振 | XTAL OSC XO 175.0000MHZ LVPECL | Si531 | 175 MHz |
| 531EA186M666DGR | Skyworks有源晶振 | XTAL OSC XO 186.6660MHZ LVPECL | Si531 | 186.666 MHz |
| 531EA187M500DGR | Skyworks有源晶振 | XTAL OSC XO 187.5000MHZ LVPECL | Si531 | 187.5 MHz |
| 531EA200M000DGR | Skyworks有源晶振 | XTAL OSC XO 200.0000MHZ LVPECL | Si531 | 200 MHz |
| 531FA000211DGR | Skyworks有源晶振 | XTAL OSC XO 125.00625MHZ LVDS | Si531 | 125.00625 MHz |
| 531FA000229DGR | Skyworks有源晶振 | XTAL OSC XO 156.257812MHZ LVDS | Si531 | 156.257812 MHz |
| 531FA135M000DGR | Skyworks有源晶振 | XTAL OSC XO 135.0000MHZ LVDS SMD | Si531 | 135 MHz |
| 531FA148M352DGR | Skyworks有源晶振 | XTAL OSC XO 148.3520MHZ LVDS SMD | Si531 | 148.352 MHz |
| 531FA148M500DGR | Skyworks有源晶振 | XTAL OSC XO 148.5000MHZ LVDS SMD | Si531 | 148.5 MHz |
| 531FA150M000DGR | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si531 | 150 MHz |
| 531FA155M520DGR | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si531 | 155.52 MHz |
| 531FA156M250DGR | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si531 | 156.25 MHz |
| 531FA156M256DGR | Skyworks有源晶振 | XTAL OSC XO 156.2560MHZ LVDS SMD | Si531 | 156.256 MHz |
| 531FA162M000DGR | Skyworks有源晶振 | XTAL OSC XO 162.0000MHZ LVDS SMD | Si531 | 162 MHz |
| 531FA166M620DGR | Skyworks有源晶振 | XTAL OSC XO 166.6200MHZ LVDS SMD | Si531 | 166.62 MHz |
| 531FA166M667DGR | Skyworks有源晶振 | XTAL OSC XO 166.6670MHZ LVDS SMD | Si531 | 166.667 MHz |
| 531FA167M000DGR | Skyworks有源晶振 | XTAL OSC XO 167.0000MHZ LVDS SMD | Si531 | 167 MHz |
| 531FA170M000DGR | Skyworks有源晶振 | XTAL OSC XO 170.0000MHZ LVDS SMD | Si531 | 170 MHz |
| 531FA175M000DGR | Skyworks有源晶振 | XTAL OSC XO 175.0000MHZ LVDS SMD | Si531 | 175 MHz |
| 531FA199M950DGR | Skyworks有源晶振 | XTAL OSC XO 199.9500MHZ LVDS SMD | Si531 | 199.95 MHz |
| 531FA200M050DGR | Skyworks有源晶振 | XTAL OSC XO 200.0500MHZ LVDS SMD | Si531 | 200.05 MHz |
| 531FA204M800DGR | Skyworks有源晶振 | XTAL OSC XO 204.8000MHZ LVDS SMD | Si531 | 204.8 MHz |
| 531FA212M500DGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | Si531 | 212.5 MHz |
| 531MA000361DGR | Skyworks有源晶振 | XTAL OSC XO 161.32813MHZ LVPECL | Si531 | 161.32813 MHz |
| 531MA153M600DGR | Skyworks有源晶振 | XTAL OSC XO 153.6000MHZ LVPECL | Si531 | 153.6 MHz |
| 531NA155M520DGR | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si531 | 155.52 MHz |
