- 編號：1570906
- 頻率：312.5MHZ
- 尺寸：7.0*5.0mm
思佳訊LVDS輸出晶振,536FC312M500DGR,Si536電信晶振
思佳訊LVDS輸出晶振,536FC312M500DGR,Si536電信晶振，尺寸7050mm,頻率312.5MHZ，輸出邏輯LVDS，電壓2.5V，Skyworks進口晶振，思佳訊進口晶振，LVDS貼片振蕩器，差分晶振，貼片差分晶振，差分石英晶體振蕩器，OSC差分石...
思佳訊LVDS輸出晶振,536FC312M500DGR,Si536電信晶振，尺寸7050mm,頻率312.5MHZ，輸出邏輯LVDS，電壓2.5V，Skyworks進口晶振，思佳訊進口晶振，LVDS貼片振蕩器，差分晶振，貼片差分晶振，差分石英晶體振蕩器，OSC差分石英晶振，有源差分晶振，7050mm差分晶振，低電壓差分振蕩器，低功耗差分晶振，低相位差分晶振，低相噪差分晶振，電信專用差分晶振，無線網絡差分晶振，娛樂設備差分晶振，藍牙模塊差分晶振，通訊差分晶振，以太網差分晶振，光通訊差分信號輸出LVDS，小型設備差分晶振，具有低電壓低功耗的特點。

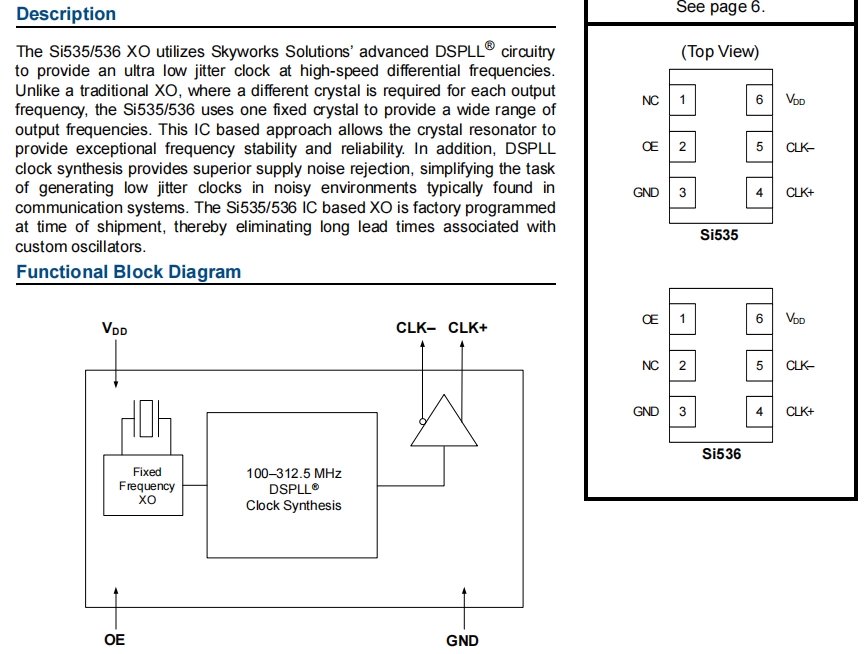

差分晶振超適合用于電信，無線網絡，娛樂設備，藍牙模塊，通訊，以太網等領域。DSPLL時鐘合成提供了卓越的電源噪聲抑制，簡化了任務在噪聲環境中生成低抖動時鐘通信系統。基于Si535/536 IC的XO是工廠編程的在裝運時，從而消除了與定制振蕩器。思佳訊LVDS輸出晶振,536FC312M500DGR,Si536電信晶振.
思佳訊LVDS輸出晶振,536FC312M500DGR,Si536電信晶振 參數表
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| Supply Voltage1 | V DD | 3.3 V option | 2.97 | 3.3 | 3.63 | V | ||||||||||||||||
| 2.5 V option | 2.25 | 2.5 | 2.75 | V | ||||||||||||||||||
| Supply Current | IDD |
Output enabled LVPECL LVDS |
— — |
111 90 |
121 98 |
mA | ||||||||||||||||
| Tristate mode | — | 60 | 75 | mA | ||||||||||||||||||
| Output Enable (OE)2 | VIH | 0.75 x V DD | — | — | V | |||||||||||||||||
| VIL | — | — | 0.5 | V | ||||||||||||||||||
| Operating Temperature Range | TA | –40 | — | 85 | °C | |||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| Nominal Frequency1 | fO | LVPECL/LVDS | 312.5 | MHz | ||||||||||||||||||
| Initial Accuracy | fi |
Measured at +25 °C at time of shipping |
— | ±1.5 | — | ppm | ||||||||||||||||
| Temperature Stability1,2 |
–7 –20 |
— — |
+7 +20 |
ppm | ||||||||||||||||||
| Aging | fa | Frequency drift over first year | ±3 | ppm | ||||||||||||||||||
|
Frequency drift over 20 year life |
— | — | ±10 | ppm | ||||||||||||||||||
| Total Stability2 | Temp stability = ±20 ppm | — | — | ±31.5 | ppm | |||||||||||||||||
| Temp stability = ±7 ppm | — | — | 20 | |||||||||||||||||||
| Powerup Time3 | tOSC | TA = –40°C — +85°C | 10 | ms | ||||||||||||||||||
| Parameter | Symbol | Test Condition | Min | Typ | Max | Unit | ||||||||||||||||
| LVPECL Output Option1 | VO | Mid-level | V DD – 1.42 | — | V DD – 1.25 | V | ||||||||||||||||
| VOD | Swing (diff) | 1.1 | — | 1.9 | VPP | |||||||||||||||||
| VSE | Swing (Single-ended) | 0.55 | — | 0.95 | VPP | |||||||||||||||||
| LVDS Output Option2 | VO | Mid-level | 1.125 | 1.20 | 1.275 | V | ||||||||||||||||
| VOD | Swing (diff) | 0.5 | 0.7 | 0.9 | VPP | |||||||||||||||||
| Rise/Fall time (20/80%) | tR,t F | — | — | 350 | ps | |||||||||||||||||
| Symmetry (duty cycle) | SYM | Differential | 45 | — | 55 | % | ||||||||||||||||
思佳訊LVDS輸出晶振,536FC312M500DGR,Si536電信晶振

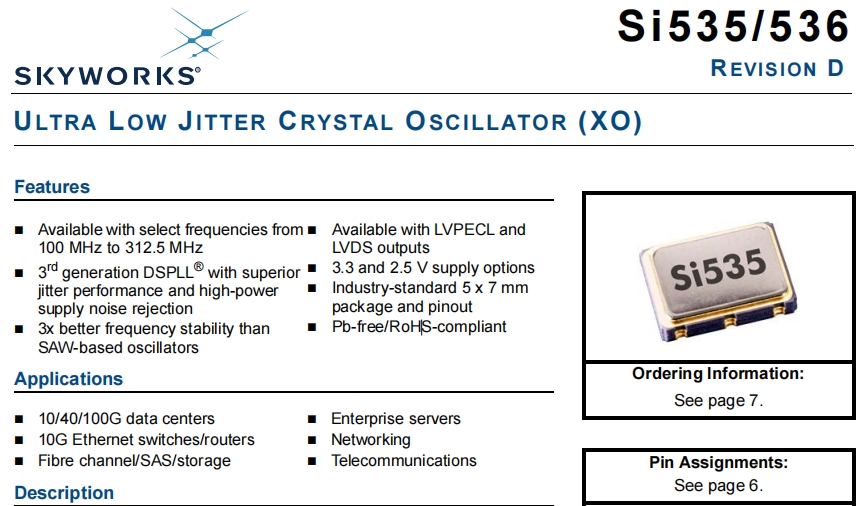

SMD晶振產品特性：
可從中選擇頻率100MHz至312.5MHz
具有卓越性能的第三代DSPLL®抖動性能和高功率電源噪聲抑制
頻率穩定性比SAW振蕩器
LVPECL和LVDS輸出
3.3和2.5 V電源選項
行業標準5x7mm包裝和引腳
無鉛/符合RoHS
具有卓越性能的第三代DSPLL®抖動性能和高功率電源噪聲抑制
頻率穩定性比SAW振蕩器
LVPECL和LVDS輸出
3.3和2.5 V電源選項
行業標準5x7mm包裝和引腳
無鉛/符合RoHS
| Mfr Part # | Mfr | Description | Series | Frequency | Output |
| 536BC159M375DGR | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVDS SMD | Si536 | 159.375 MHz | LVDS |
| 536BC312M500DGR | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si536 | 312.5 MHz | LVDS |
| 536FB000172DGR | Skyworks有源晶振 | XTAL OSC XO 166.6286MHZ LVDS SMD | Si536 | 166.6286 MHz | LVDS |
| 536FB000175DGR | Skyworks有源晶振 | XTAL OSC XO 167.3316MHZ LVDS SMD | Si536 | 167.3316 MHz | LVDS |
| 536FB000292DGR | Skyworks有源晶振 | XTAL OSC XO 161.1328MHZ LVDS SMD | Si536 | 161.1328 MHz | LVDS |
| 536FB000305DGR | Skyworks有源晶振 | XTAL OSC XO 156.2578MHZ LVDS SMD | Si536 | 156.2578 MHz | LVDS |
| 536FB106M250DGR | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si536 | 106.25 MHz | LVDS |
| 536FB150M000DGR | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si536 | 150 MHz | LVDS |
| 536FB155M520DGR | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si536 | 155.52 MHz | LVDS |
| 536FB159M375DGR | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVDS SMD | Si536 | 159.375 MHz | LVDS |
| 536FC000172DGR | Skyworks有源晶振 | XTAL OSC XO 166.6286MHZ LVDS SMD | Si536 | 166.6286 MHz | LVDS |
| 536FC000175DGR | Skyworks有源晶振 | XTAL OSC XO 167.3316MHZ LVDS SMD | Si536 | 167.3316 MHz | LVDS |
| 536FC000292DGR | Skyworks有源晶振 | XTAL OSC XO 161.1328MHZ LVDS SMD | Si536 | 161.1328 MHz | LVDS |
| 536FC000305DGR | Skyworks有源晶振 | XTAL OSC XO 156.2578MHZ LVDS SMD | Si536 | 156.2578 MHz | LVDS |
| 536FC000338DGR | Skyworks有源晶振 | XTAL OSC XO 338.0000KHZ LVDS SMD | Si536 | 338 kHz | LVDS |
| 536FC106M250DGR | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si536 | 106.25 MHz | LVDS |
| 536FC150M000DGR | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si536 | 150 MHz | LVDS |
| 536FC155M520DGR | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si536 | 155.52 MHz | LVDS |
| 536FC156M250DGR | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si536 | 156.25 MHz | LVDS |
| 536FC159M375DGR | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVDS SMD | Si536 | 159.375 MHz | LVDS |
| 536FC212M500DGR | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | Si536 | 212.5 MHz | LVDS |
| 536FC312M500DGR | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si536 | 312.5 MHz | LVDS |
| 536FC159M375DG | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVDS SMD | Si536 | 159.375 MHz | LVDS |
| 536FC212M500DG | Skyworks有源晶振 | XTAL OSC XO 212.5000MHZ LVDS SMD | Si536 | 212.5 MHz | LVDS |
| 536FC312M500DG | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si536 | 312.5 MHz | LVDS |
| 536BB000172DG | Skyworks有源晶振 | XTAL OSC XO 166.6286MHZ LVDS SMD | Si536 | 166.6286 MHz | LVDS |
| 536BB000175DG | Skyworks有源晶振 | XTAL OSC XO 167.3316MHZ LVDS SMD | Si536 | 167.3316 MHz | LVDS |
| 536BB106M250DG | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si536 | 106.25 MHz | LVDS |
| 536BB150M000DG | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si536 | 150 MHz | LVDS |
| 536BB155M520DG | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si536 | 155.52 MHz | LVDS |
| 536BB159M375DG | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVDS SMD | Si536 | 159.375 MHz | LVDS |
| 536BC000172DG | Skyworks有源晶振 | XTAL OSC XO 166.6286MHZ LVDS SMD | Si536 | 166.6286 MHz | LVDS |
| 536BC000175DG | Skyworks有源晶振 | XTAL OSC XO 167.3316MHZ LVDS SMD | Si536 | 167.3316 MHz | LVDS |
| 536BC000292DG | Skyworks有源晶振 | XTAL OSC XO 161.1328MHZ LVDS SMD | Si536 | 161.1328 MHz | LVDS |
| 536BC000305DG | Skyworks有源晶振 | XTAL OSC XO 156.2578MHZ LVDS SMD | Si536 | 156.2578 MHz | LVDS |
| 536BC106M250DG | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si536 | 106.25 MHz | LVDS |
| 536BC155M520DG | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si536 | 155.52 MHz | LVDS |
| 536BC159M375DG | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVDS SMD | Si536 | 159.375 MHz | LVDS |
| 536BC312M500DG | Skyworks有源晶振 | XTAL OSC XO 312.5000MHZ LVDS SMD | Si536 | 312.5 MHz | LVDS |
| 536FB000172DG | Skyworks有源晶振 | XTAL OSC XO 166.6286MHZ LVDS SMD | Si536 | 166.6286 MHz | LVDS |
| 536FB000175DG | Skyworks有源晶振 | XTAL OSC XO 167.3316MHZ LVDS SMD | Si536 | 167.3316 MHz | LVDS |
| 536FB000292DG | Skyworks有源晶振 | XTAL OSC XO 161.1328MHZ LVDS SMD | Si536 | 161.1328 MHz | LVDS |
| 536FB000305DG | Skyworks有源晶振 | XTAL OSC XO 156.2578MHZ LVDS SMD | Si536 | 156.2578 MHz | LVDS |
| 536FB106M250DG | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si536 | 106.25 MHz | LVDS |
| 536FB150M000DG | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si536 | 150 MHz | LVDS |
| 536FB155M520DG | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si536 | 155.52 MHz | LVDS |
| 536FB159M375DG | Skyworks有源晶振 | XTAL OSC XO 159.3750MHZ LVDS SMD | Si536 | 159.375 MHz | LVDS |
| 536FC000172DG | Skyworks有源晶振 | XTAL OSC XO 166.6286MHZ LVDS SMD | Si536 | 166.6286 MHz | LVDS |
| 536FC000175DG | Skyworks有源晶振 | XTAL OSC XO 167.3316MHZ LVDS SMD | Si536 | 167.3316 MHz | LVDS |
| 536FC000292DG | Skyworks有源晶振 | XTAL OSC XO 161.1328MHZ LVDS SMD | Si536 | 161.1328 MHz | LVDS |
| 536FC000305DG | Skyworks有源晶振 | XTAL OSC XO 156.2578MHZ LVDS SMD | Si536 | 156.2578 MHz | LVDS |
| 536FC000338DG | Skyworks有源晶振 | XTAL OSC XO 338.0000KHZ LVDS SMD | Si536 | 338 kHz | LVDS |
| 536FC106M250DG | Skyworks有源晶振 | XTAL OSC XO 106.2500MHZ LVDS SMD | Si536 | 106.25 MHz | LVDS |
| 536FC150M000DG | Skyworks有源晶振 | XTAL OSC XO 150.0000MHZ LVDS SMD | Si536 | 150 MHz | LVDS |
| 536FC155M520DG | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVDS SMD | Si536 | 155.52 MHz | LVDS |
| 536FC156M250DG | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVDS SMD | Si536 | 156.25 MHz | LVDS |
| 536AB000335DGR | Skyworks有源晶振 | XTAL OSC XO 156.2539MHZ LVPECL | Si536 | 156.2539 MHz | LVPECL |
| 536AB100M000DGR | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVPECL | Si536 | 100 MHz | LVPECL |
| 536AB125M000DGR | Skyworks有源晶振 | XTAL OSC XO 125.0000MHZ LVPECL | Si536 | 125 MHz | LVPECL |
| 536AB155M520DGR | Skyworks有源晶振 | XTAL OSC XO 155.5200MHZ LVPECL | Si536 | 155.52 MHz | LVPECL |
| 536AB156M250DGR | Skyworks有源晶振 | XTAL OSC XO 156.2500MHZ LVPECL | Si536 | 156.25 MHz | LVPECL |
| 536BB000292DGR | Skyworks有源晶振 | XTAL OSC XO 161.1328MHZ LVDS SMD | Si536 | 161.1328 MHz | LVDS |
| 536BB000305DGR | Skyworks有源晶振 | XTAL OSC XO 156.2578MHZ LVDS SMD | Si536 | 156.2578 MHz | LVDS |
| 536BB000335DGR | Skyworks有源晶振 | XTAL OSC XO 156.2539MHZ LVDS SMD | Si536 | 156.2539 MHz | LVDS |
| 536BB100M000DGR | Skyworks有源晶振 | XTAL OSC XO 100.0000MHZ LVDS SMD | Si536 | 100 MHz | LVDS |
