非常適合血壓計的TCXO溫補晶振編碼X1G005731060216，如今的愛普生公司已經是名揚天下的知名企業，通過自身的不斷打造強而有力的壁壘，持續為社會作出巨大的貢獻，不斷為社會創造巨大的價值，同時得以實現自我的價值，這便是愛普生公司，憑著自身的果敢，立志在晶體行業做出一番成就，開發出優質的有源晶振，并深得市場的歡迎。

Product Number	Model	Frequency	愛普生晶振	Supply Voltage	F.Tol@25°C	Ope Temperature	Freq/Temp
X1G005731010116	TG2016SLN	26.000000 MHz	2.00 x 1.60 x 0.61 mm	1.700 to 1.900 V	+/-2.0 ppm	-40 to ++85 °C	+/-0.50 ppm
X1G005731050116	TG2016SLN	26.000000 MHz	2.00 x 1.60 x 0.61 mm	1.700 to 1.900 V	+/-2.0 ppm	-40 to ++85 °C	+/-0.50 ppm
X1G005731050216	TG2016SLN	38.400000 MHz	2.00 x 1.60 x 0.61 mm	1.700 to 1.900 V	+/-2.0 ppm	-40 to ++85 °C	+/-0.50 ppm
X1G005731060116	TG2016SLN	26.000000 MHz	2.00 x 1.60 x 0.61 mm	3.135 to 3.465 V	+/-2.0 ppm	-40 to ++85 °C	+/-0.50 ppm
X1G005731060216	TG2016SLN	38.400000 MHz	2.00 x 1.60 x 0.61 mm	3.135 to 3.465 V	+/-2.0 ppm	-40 to ++85 °C	+/-0.50 ppm
X1G005731070116	TG2016SLN	26.000000 MHz	2.00 x 1.60 x 0.61 mm	1.700 to 1.900 V	+/-2.0 ppm	-40 to +105 °C	+/-0.50 ppm
X1G005731070216	TG2016SLN	38.400000 MHz	2.00 x 1.60 x 0.61 mm	1.700 to 1.900 V	+/-2.0 ppm	-40 to +105 °C	+/-0.50 ppm
X1G005731080116	TG2016SLN	26.000000 MHz	2.00 x 1.60 x 0.61 mm	3.135 to 3.465 V	+/-2.0 ppm	-40 to +105 °C	+/-0.50 ppm
X1G005731080216	TG2016SLN	38.400000 MHz	2.00 x 1.60 x 0.61 mm	3.135 to 3.465 V	+/-2.0 ppm	-40 to +105 °C	+/-0.50 ppm
X1G005441001225	TG2016SMN	40.000000 MHz	2.00 x 1.60 x 0.61 mm	2.800 to 3.630 V	+/-1.5 ppm	40 to +85 °C	+/-0.50 ppm
X1G005441003125	TG2016SMN	19.200000 MHz	2.00 x 1.60 x 0.61 mm	2.660 to 2.940 V	+/-1.5 ppm	40 to +85 °C	+/-0.50 ppm
X1G005441003325	TG2016SMN	39.000000 MHz	2.00 x 1.60 x 0.61 mm	3.135 to 3.465 V	+/-1.5 ppm	40 to +85 °C	+/-0.50 ppm
X1G005441004725	TG2016SMN	19.200000 MHz	2.00 x 1.60 x 0.61 mm	3.135 to 3.465 V	+/-1.5 ppm	40 to +85 °C	+/-0.50 ppm
X1G005441006525	TG2016SMN	38.400000 MHz	2.00 x 1.60 x 0.61 mm	1.700 to 1.900 V	+/-1.5 ppm	40 to +85 °C	+/-0.50 ppm
X1G005441020125	TG2016SMN	16.368000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441020225	TG2016SMN	16.369000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441020325	TG2016SMN	19.200000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441020425	TG2016SMN	26.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm
X1G005441020525	TG2016SMN	32.000000 MHz	2.00 x 1.60 x 0.73 mm	1.700 to 1.900 V	+/-1.5 ppm	-40 to +85 °C	+/-0.50 ppm

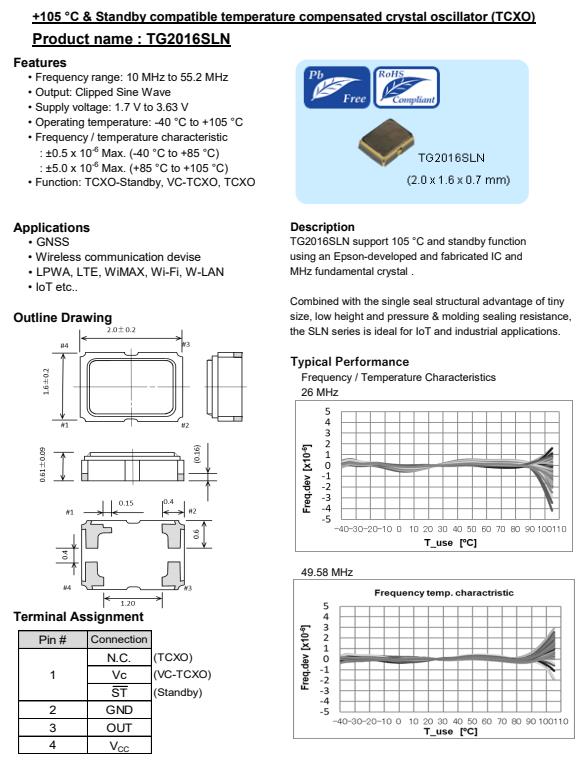

愛普生的這款TG2016SLN晶振，編碼X1G005731060216，頻率38.400000兆赫，輸出剪波正弦波，電源電壓3.13 ~ 3.46 V，電源電壓(一般)3.300 V，尺寸(LxWxH)2.0 x 1.6 x 0.6 mm，操作溫度-40至++85°C，頻率公差+/- 2.0 ppm具有非常高的穩可靠性能,非常適用于血壓計晶振，智能穿戴，儀器儀表，通信設備設計,TG2016SLN晶振其小體積,高精度,低功耗的特性以及優良的耐熱性與耐環境特性,成為智能穿戴設備時鐘的最佳之選.

非常適合血壓計的TCXO溫補晶振編碼X1G005731060216，有源晶振是一個完整的振蕩器。石英晶體振蕩器與石英晶體諧振器都是提供穩定電路頻率的一種電子器件。每種石英晶體振蕩器都具備不一樣的功能,但同樣擁有低功耗，低電壓電流，低相位抖動，低相噪等優異特性。
