- 編號：75925045
- 頻率：27MHZ
- 尺寸：2.5*2.0mm

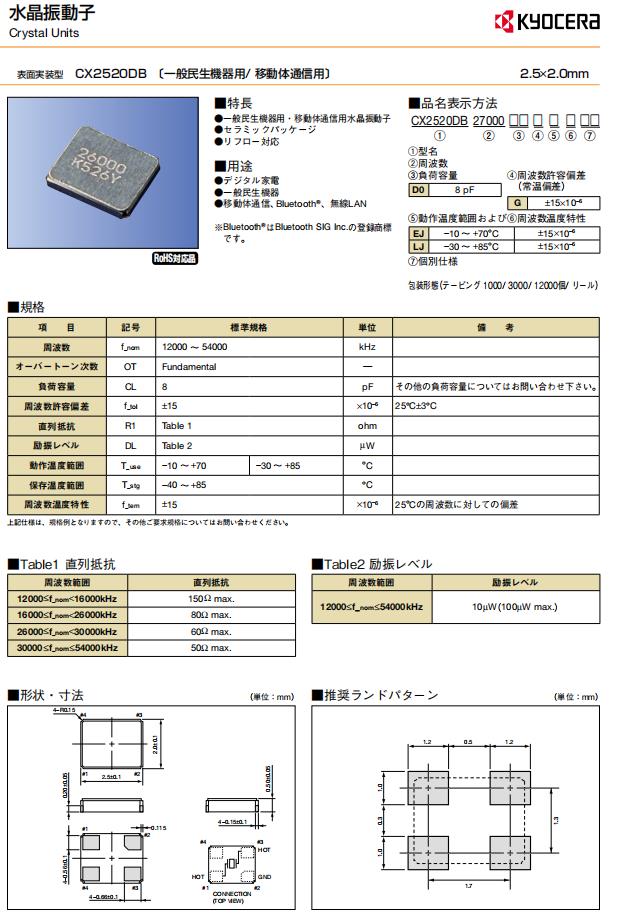

CX2520DB27000B0FLHA1數據手冊|CX2520DB|2520mm|27MHZ|無線局域網
CX2520DB27000B0FLHA1數據手冊|CX2520DB|2520mm|27MHZ|無線局域網,尺寸為2520mm,頻率為27MHZ，日本京瓷晶振，Kyocera晶振，無源諧振器，石英晶振，石英晶體諧振器，SMD晶體諧振器，SMD石英晶體，石英貼片晶振，水晶振...
TXC,NDK,希華.jpg)
CX2520DB27000B0FLHA1數據手冊|CX2520DB|2520mm|27MHZ|無線局域網,尺寸為2520mm,頻率為27MHZ，日本京瓷晶振，Kyocera晶振，無源諧振器，石英晶振，石英晶體諧振器，SMD晶體諧振器，SMD石英晶體，石英貼片晶振，水晶振動子，無源晶體，高質量晶振，藍牙專用晶振，移動通信晶振，無線局域網晶振，數字家電專用晶振，普通民用設備晶振，2520mm貼片晶振，27MHZ無源晶振。SMD石英晶體產品主要應用范圍廣泛，包含普通民用設備、移動通信用晶振器，數字家電，普通民用設備，移動通信、藍牙®、無線局域網等領域。CX2520DB27000B0FLHA1數據手冊|CX2520DB|2520mm|27MHZ|無線局域網.
格發TXC,NDK,希華.jpg)
CX2520DB27000B0FLHA1數據手冊|CX2520DB|2520mm|27MHZ|無線局域網 參數表

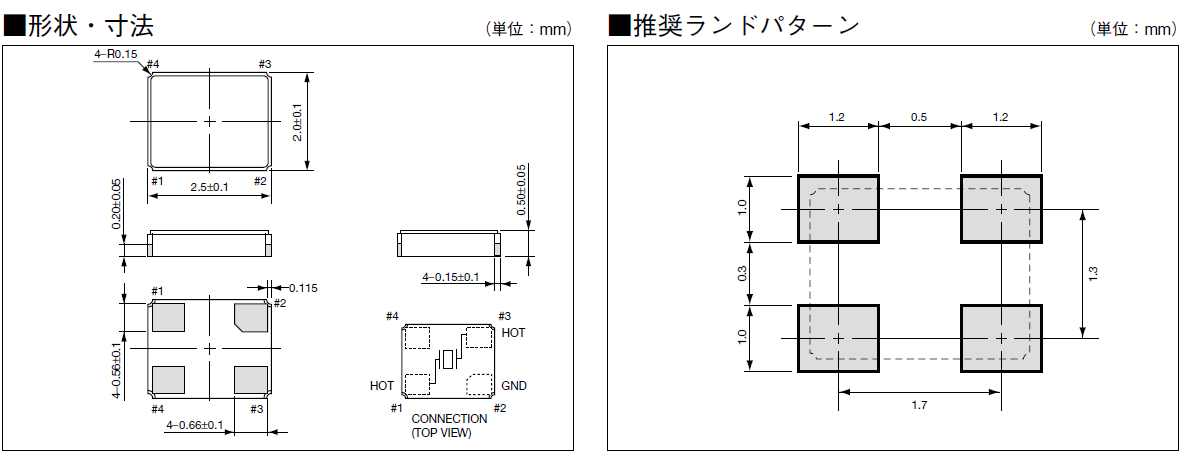

CX2520DB27000B0FLHA1數據手冊|CX2520DB|2520mm|27MHZ|無線局域網 尺寸圖
| 項 目 | 記號 | 標準規格 | 単位 | 備 考 | |||||||||||
| 頻率 | f_nom | 12000 ~ 54000 | kHz | ||||||||||||
| 過音階 | OT | Fundamental | ― | ||||||||||||
| 負載容量 | CL | 8 | pF | 關于其他的負荷容量請咨詢。 | |||||||||||
| 頻率容許偏差 | f_tol | ± 15 | × 10−6 | 25°C±3°C | |||||||||||
| 直列抵抗 | R1 | Table 1 | ohm | ||||||||||||
| 激勵水平 | DL | Table 2 |
 W |
||||||||||||
| 動作溫度范圍 | T_use | − 10 ~ +70 | −30 ~ +85 | °C | |||||||||||
| 保存溫度范圍 | T_stg | −40 ~ +85 | °C | ||||||||||||
| 周波數溫度特性 | f_tem | ± 15 | × 10−6 | 相對于25°C頻率的偏差 | |||||||||||
普通民用設備、移動通信用晶振器
●陶瓷封裝
●應對回流
■用途
●數字家電
●普通民用設備
●移動通信、藍牙®、無線局域網
●陶瓷封裝
●應對回流
■用途
●數字家電
●普通民用設備
●移動通信、藍牙®、無線局域網
| 原廠編碼 | 廠家 | 型號 | 系列 | 頻率 |
| CX2520DB16000D0GEJCC | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 16MHz |
| CX2520DB24000D0GEJCC | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 24MHz |
| CX2520DB40000D0FLJCC | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 40MHz |
| CX2520DB27000H0KLSA1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 27MHz |
| CX2520DB27000B0FLHA1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 27MHz |
| CX2520DB40000H0FLJC3 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 40MHz |
| CX2520DB40000D0GPSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera貼片無源晶振 | MHz Crystal | 40MHz |
| CX2520DB13560H0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 13.56MHz |
| CX2520DB19200D0FLJC2 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 19.2MHz |
| CX2520DB27000D0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 27MHz |
| CX2520DB26000D0GPSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 26MHz |
| CX2520DB27000H0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 27MHz |
| CX2520DB25000D0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 25MHz |
| CX2520DB13560D0FLJC2 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 13.56MHz |
| CX2520DB24000H0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 24MHz |
| CX2520DB12000D0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 12MHz |
| CX2520DB16000H0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 16MHz |
| CX2520DB16000D0GPSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 16MHz |
| CX2520DB12000H0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 12MHz |
| CX2520DB19200H0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 19.2MHz |
| CX2520DB32000D0GPSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 32MHz |
| CX2520DB32000H0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 32MHz |
| CX2520DB26000H0FLJC2 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 26MHz |
| CX2520DB16000D0WZRC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 16MHz |
| CX2520DB30000D0GEJCC | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 30MHz |
| CX2520DB16000D0FLJCC | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 16MHz |
| CX2520DB26000D0FLJCC | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 26MHz |
| CX2520DB38400D0FZGC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 38.4MHz |
| CX2520DB32000D0FLJCC | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 32MHz |
| CX2520DB48000D0GEJCC | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 48MHz |
| CX2520DB24576D0GEJCC | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 24.576MHz |
| CX2520DB25000H0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 25MHz |
| CX2520DB12000C0WLSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 12MHz |
| CX2520DB12000D0GPSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 12MHz |
| CX2520DB13560D0GPSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 13.56MHz |
| CX2520DB19200D0GPSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 19.2MHz |
| CX2520DB20000H0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 20MHz |
| CX2520DB20000D0GPSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 20MHz |
| CX2520DB24000D0GPSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 24MHz |
| CX2520DB24576D0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 24.576MHz |
| CX2520DB24576H0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 24.576MHz |
| CX2520DB24576D0GPSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 24.576MHz |
| CX2520DB25000D0GPSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 25MHz |
| CX2520DB27000D0GPSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 27MHz |
| CX2520DB30000D0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 30MHz |
| CX2520DB30000H0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 30MHz |
| CX2520DB30000D0GPSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 30MHz |
| CX2520DB38400H0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 38.4MHz |
| CX2520DB38400D0GPSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 38.4MHz |
| CX2520DB48000D0FLJC2 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 48MHz |
| CX2520DB48000H0FLJC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 48MHz |
| CX2520DB48000D0GPSC1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 48MHz |
| CX2520DB32000D0GEJCC | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 32MHz |
| CX2520DB20000D0FLJCC | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 20MHz |
| CX2520DB38400D0FLJCC | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 38.4MHz |
| CX2520DB24576H0HZQA1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 24.576MHz |
| CX2520DB26041F0FJLA1 | 京瓷晶振 | CX2520DB, Kyocera | MHz Crystal | 26.041MHz |
| CX2520DB48000D0GEJZ1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 48MHz |
| CX2520DB24576D0GEJZ1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 24.576MHz |
| CX2520DB26000D0FLJZ1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 26MHz |
| CX2520DB30000D0GEJZ1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 30MHz |
| CX2520DB32000D0FLJZ1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 32MHz |
| CX2520DB32000D0GEJZ1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 32MHz |
| CX2520DB16000D0FLJZ1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 16MHz |
| CX2520DB38400D0FLJZ1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 38.4MHz |
| CX2520DB16000D0GEJZ1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 16MHz |
| CX2520DB40000D0FLJZ1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 40MHz |
| CX2520DB20000D0FLJZ1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 20MHz |
| CX2520DB24000D0GEJZ1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 24MHz |
| CX2520DB24000C0FLJA1 | AVX Corp/Kyocera Corp | CX2520DB, Kyocera | MHz Crystal | 24MHz |
