首頁進口晶振愛普生晶振X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用

X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用

編號：6933638
頻率：20MHZ
尺寸：7.0*5.0mm

X1G0039010095TG-5501CACMOS20MHZ微波BTS專用，尺寸為7050mm,頻率為20MHZ,電壓3.1~3.4V，日本進口晶振，愛普生晶振，CMOS輸出晶振，有源晶振，石英晶體振蕩器，7050mm晶振，20MHZ晶振，TCXO溫補晶振，OSC振蕩器，網絡...

X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用，尺寸為7050mm,頻率為20MHZ,電壓3.1~3.4V，日本進口晶振，愛普生晶振，CMOS輸出晶振，有源晶振，石英晶體振蕩器，7050mm晶振，20MHZ晶振，TCXO溫補晶振，OSC振蕩器，網絡同步晶振，網絡設備晶振，智能家居晶振，無線電子晶振，藍牙音響晶振，羅拉模塊晶振，微波BTS專用晶振，X1G0039010090晶振，X1G0039010089晶振。
貼片有源晶振產品主要用于網絡同步，Stratum3，微波BTS，羅拉模塊，智能家居，無線電子等領域。X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用

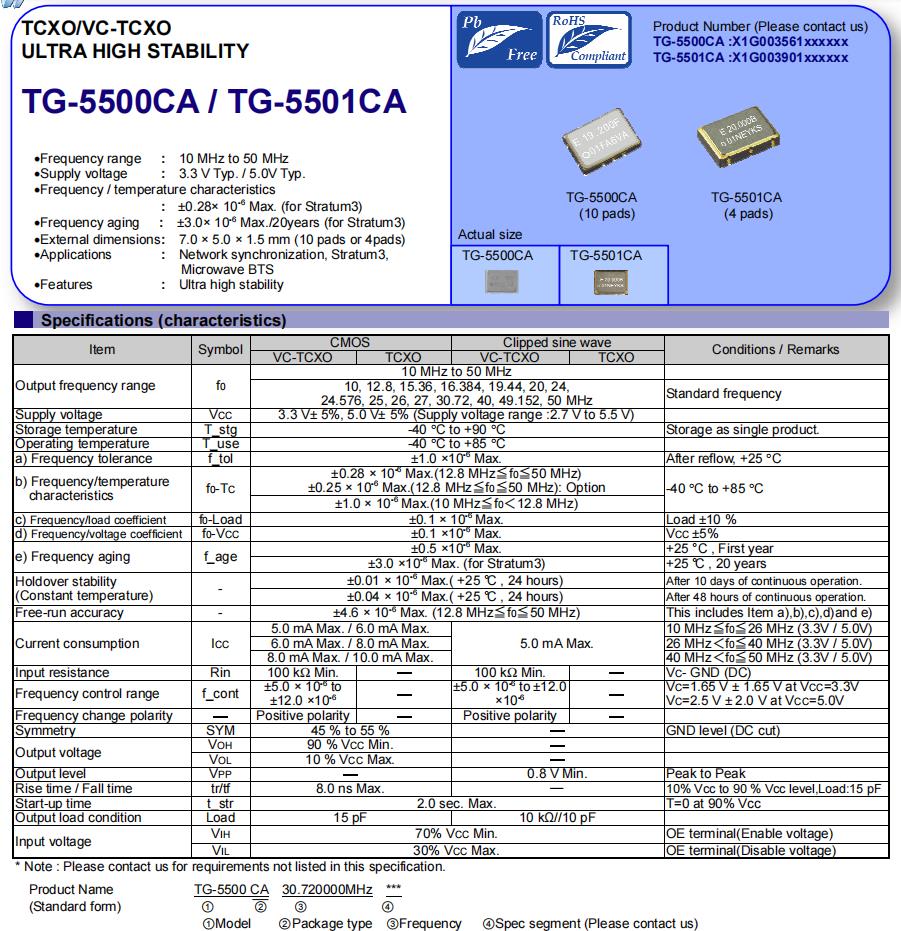

X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用 參數表

Item

Symbol

CMOS

Clipped sine wave

Conditions / Remarks

VC-TCXO

TCXO

VC-TCXO

TCXO

Output frequency range

10 MHz to 50 MHz

10, 12.8, 15.36, 16.384, 19.44, 20, 24,
24.576, 25, 26, 27, 30.72, 40, 49. 152, 50 MHz

Standard frequency

Supply voltage

VCC

3.3 V± 5%, 5.0 V± 5% (Supply voltage range :2.7 V to 5.5 V)

Storage temperature

T_stg

-40 °C to +90 °C

Storage as single product.

Operating temperature

T_use

-40 °C to +85 °C

a) Frequency tolerance

f_tol

± 1.0 ×10-6 Max.

After reflow, +25 °C

b) Frequency/temperature
characteristics

0-TC

±0.28 × 10-6 Max.(12.8 MHz元f0 元50 MHz)
±0.25 × 10-6 Max.(12.8 MHz元f0 元50 MHz): Option

-40 °C to +85 °C

±1.0 × 10-6 Max.(10 MHz元f0 <12.8 MHz)

c) Frequency/load coefficient

0-Load

±0. 1 × 10-6 Max.

Load ±10 %

d) Frequency/voltage coefficient

0-VCC

±0. 1 ×10-6 Max.

VCC ±5%

e) Frequency aging

f_age

±0.5 ×10-6 Max.

+25 °C , First year

±3.0 ×10-6 Max. (for Stratum3)

+25 °C , 20 years

Holdover stability
(Constant temperature)

±0.01 × 10-6 Max.( +25 °C , 24 hours)

After 10 days of continuous operation .

±0.04 × 10-6 Max.( +25 °C , 24 hours)

After 48 hours of continuous operation .

Free-run accuracy

±4.6 × 10-6 Max. (12.8 MHz元f0 元50 MHz)

This includes Item a),b),c),d)and e)

Current consumption

ICC

5.0 mA Max. / 6.0 mA Max.

5.0 mA Max.

10 MHz元f0 元26 MHz (3.3V / 5.0V)

6.0 mA Max. / 8.0 mA Max.

26 MHz

8.0 mA Max. / 10.0 mA Max.

40 MHz

Input resistance

Rin

100 k? Min.

VC- GND (DC)

Frequency control range

f_cont

±5.0 × 10-6 to
±12.0 ×10-6

±5.0 × 10-6 to ±12.0
×10-6

VC=1.65 V ± 1.65 V at VCC=3.3V
VC=2.5 V ± 2.0 V at VCC=5.0V

Frequency change polarity

Positive polarity

Symmetry

SYM

45 % to 55 %

GND level (DC cut)

Output voltage

VOH

90 % VCC Min.

VOL

10 % VCC Max.

Output level

VPP

0.8 V Min.

Peak to Peak

Rise time / Fall time

tr/tf

8.0 ns Max.

10% Vcc to 90 % Vcc level,Load:15 pF

Start-up time

t_str

2.0 sec. Max.

T=0 at 90% Vcc

Output load condition

Load

15 pF

10 kQ// 10 pF

Input voltage

VIH

70% VCC Min.

OE terminal(Enable voltage)

VIL

30% VCC Max.

OE terminal(Disable voltage)

X1G0039010095晶振特點
頻率范圍:10mhz~50mhz

•供電電壓:3.3 V/ 5.0V類型

•頻率/溫度特性

±0.28×10-6(Stratum3)

頻率老化:±3.0×10-6 Max。/20年(第3層)

•外部尺寸:7.0×5.0×1.5 mm(10墊或4墊)

•特點:超高穩定性

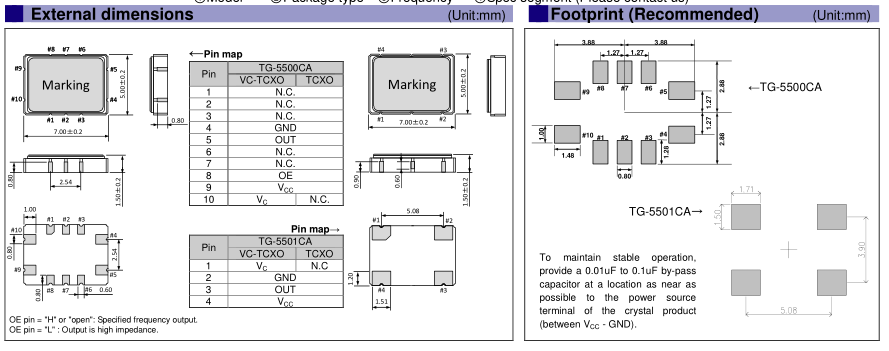

X1G0039010095 TG-5501CA CMOS 20MHZ 微波BTS專用 尺寸圖
