- 編號：70610656
- 頻率：12MHZ
- 尺寸：3.2*2.5mm

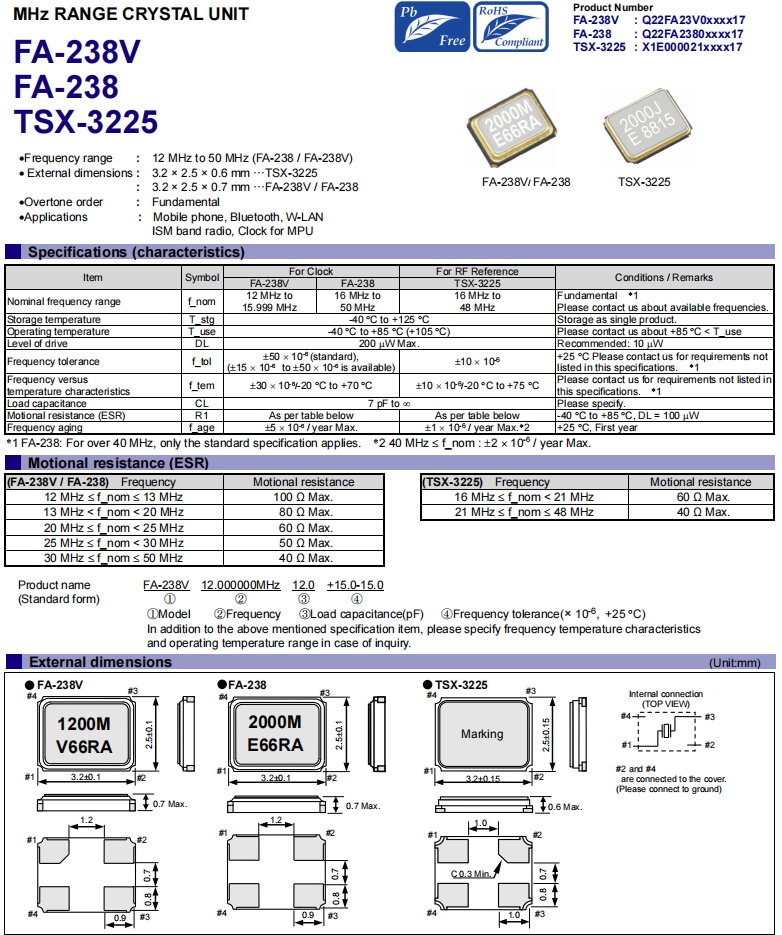

Q22FA23V00044數據手冊 FA-238V 20pF 3225mm 12MHZ
Q22FA23V00044數據手冊FA-238V20pF3225mm12MHZ,尺寸為3225mm,頻率為12MHZ，愛普生晶振，EPSON晶振，日本進口晶振，無源晶振，貼片石英晶振，水晶振動子，音叉晶體，石英晶體諧振器，SMD晶振，3225mm晶振，無源晶振，智...
TXC,NDK,希華.jpg)
Q22FA23V00044數據手冊 FA-238V 20pF 3225mm 12MHZ,尺寸為3225mm,頻率為12MHZ，愛普生晶振，EPSON晶振，日本進口晶振，無源晶振，貼片石英晶振，水晶振動子，音叉晶體，石英晶體諧振器，SMD晶振，3225mm晶振，無源晶振，智能手機晶振，藍牙晶振，無線網絡晶振，儀器設備晶振，無線局域網晶振，主控板時鐘專用晶振，通信設備晶振，Q22FA23V00033晶振，Q22FA23V00068晶振。
無源SMD晶振比較適合用于手機、藍牙、無線局域網， ISM波段無線電，主控板時鐘，以及儀器設備，通信產品等領域。Q22FA23V00044數據手冊 FA-238V 20pF 3225mm 12MHZ.格發TXC,NDK,希華.jpg)
Q22FA23V00044數據手冊 FA-238V 20pF 3225mm 12MHZ 參數表無源SMD晶振比較適合用于手機、藍牙、無線局域網， ISM波段無線電，主控板時鐘，以及儀器設備，通信產品等領域。Q22FA23V00044數據手冊 FA-238V 20pF 3225mm 12MHZ.
| 項目 | 符號 | For Clock | For RF Reference | 條件 | |||||||||||||||||||||||
| FA-238V | FA-238 | TSX-3225 | |||||||||||||||||||||||||
| 標稱頻率范圍 | f_nom |
12 MHz to 15.999 MHz |
16 MHz to 50 MHz |
16 MHz to 48 MHz |
基本* 1 請與我們聯系可用的頻率。 |
||||||||||||||||||||||
| 儲存溫度 | T_stg | -40 °C to +125 °C | 作為單一產品存儲。 | ||||||||||||||||||||||||
| 工作溫度 | T_use | -40 °C to +85 °C (+105 °C) | 請與我們聯系+85°C < T_use | ||||||||||||||||||||||||
| 驅動級別 | DL | 200 µW Max. | 建議:10µW | ||||||||||||||||||||||||
| 頻率公差 | f_tol |
±50 × 10-6 (standard), (±15 × 10-6 to ±50 × 10-6 is available) |
± 10 × 10-6 |
+25°C請與我們聯系 在本規范中列出。* 1 |
|||||||||||||||||||||||
| 頻率和溫度特性 | f_tem | ±30 × 10-6/-20 °C to +70 °C | ± 10 × 10-6/-20 °C to +75 °C |
請聯系我們的要求未列出 這個規范。* 1 |
|||||||||||||||||||||||
| 負載電容 | CL | 7 pF to ∞ | 請說明。 | ||||||||||||||||||||||||
| 運動阻力(ESR) | R1 | As per table below | As per table below | -40 °C to +85 °C, DL = 100 µW | |||||||||||||||||||||||
| 頻率老化 | f_age | ±5 × 10-6 / year Max. | ± 1 × 10-6 / year Max.*2 | +25°C，第一年year | |||||||||||||||||||||||

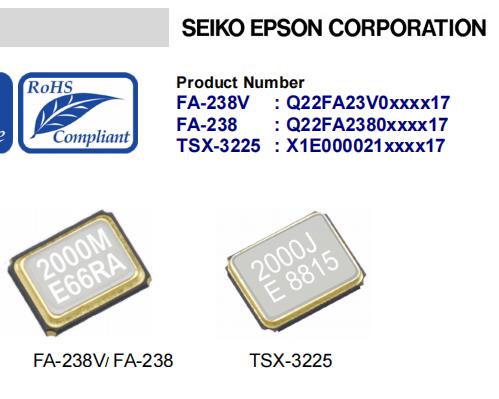

Q22FA23V00044晶振 特點
頻率范圍:12 MHz至50 MHz (FA-238 / FA-238V)

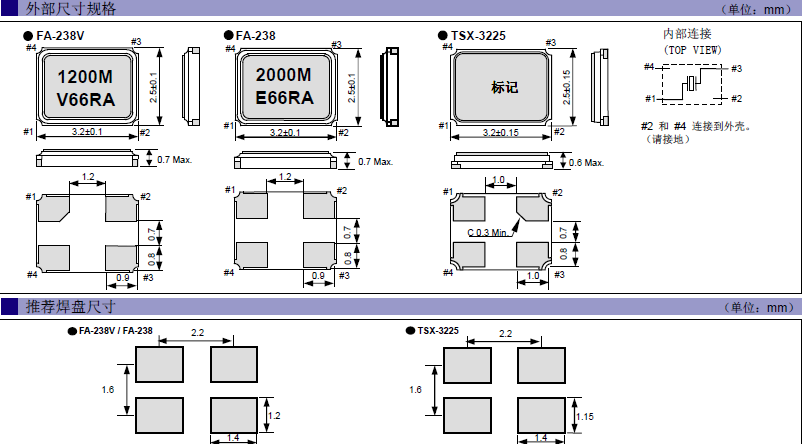

•外部尺寸:3.2 × 2.5 × 0.6 mm···TSX-3225
···FA-238V / FA-238
•泛音順序:基本
•應用范圍:手機、藍牙、無線局域網
: ISM波段無線電，主控板時鐘
更多相關日本愛普生晶振型號
| 編碼 | 尺寸 | 型號 | 頻率 | /負載 | 頻率 @+25°C | 工作溫度 |
| Q22FA23V00012 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.560000 MHz | 12 pF | +/-50 ppm | -40 to +80 °C |
| Q22FA23V00018 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 12 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00022 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 10 pF | +/-30 ppm | -20 to +70 °C |
| Q22FA23V00026 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.000000 MHz | 10 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00027 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 20 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00028 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 15 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00029 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.000000 MHz | 20 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00030 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.000000 MHz | 20 pF | +/-30 ppm | -20 to +60 °C |
| Q22FA23V00033 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 12 pF | +/-30 ppm | -20 to +70 °C |
| Q22FA23V00037 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 20 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00044 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 20 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00048 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.000000 MHz | 7 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00052 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.560000 MHz | 10 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00068 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 12 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00069 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 10 pF | +/-15 ppm | -20 to +70 °C |
| Q22FA23V00082 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 16 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00085 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 8 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00086 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 12 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00095 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 16 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00103 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 12.5 pF | +/-30 ppm | -20 to +70 °C |
| Q22FA23V00106 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 11 pF | +/-30 ppm | -20 to +70 °C |
| Q22FA23V00107 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 10 pF | +/-50 ppm | -40 to +85 °C |
| Q22FA23V00114 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 18 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00119 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.500000 MHz | 16 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00123 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.560000 MHz | 12 pF | +/-20 ppm | -40 to +85 °C |
| Q22FA23V00131 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 18 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00136 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 8 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00144 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 10 pF | +/-15 ppm | -20 to +70 °C |
| Q22FA23V00149 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 20 pF | +/-30 ppm | -20 to +70 °C |
| Q22FA23V00150 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 10 pF | +/-10 ppm | -20 to +70 °C |
| Q22FA23V00160 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 16 pF | +/-30 ppm | -20 to +70 °C |
| Q22FA23V00162 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 10 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00164 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 9 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00170 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 12 pF | +/-30 ppm | -20 to +70 °C |
| Q22FA23V00178 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.560000 MHz | 18 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00179 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.500000 MHz | 10 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00180 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 16 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00192 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 10 pF | +/-30 ppm | -20 to +70 °C |
| Q22FA23V00193 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 12.5 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00195 | 3.2 x 2.5 x 0.7mm | FA-238V石英貼片晶振 | 13.000000 MHz | 9 pF | +/-20 ppm | -40 to +85 °C |
| Q22FA23V00197 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 8 pF | +/-15 ppm | -20 to +70 °C |
| Q22FA23V00205 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 8 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00210 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 18 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00233 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 10 pF | +/-20 ppm | -20 to +70 °C |
| Q22FA23V00235 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 9 pF | +/-30 ppm | -20 to +70 °C |
| Q22FA23V00239 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 10 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00241 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 10 pF | +/-50 ppm | -40 to +85 °C |
| Q22FA23V00245 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 16 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00247 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 10 pF | +/-20 ppm | -20 to +70 °C |
| Q22FA23V00255 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 12 pF | +/-20 ppm | -20 to +70 °C |
| Q22FA23V00266 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.560000 MHz | 16 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00268 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 16 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00279 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 18 pF | +/-30 ppm | -20 to +70 °C |
| Q22FA23V00291 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 12 pF | +/-15 ppm | -40 to +85 °C |
| Q22FA23V00307 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 8 pF | +/-30 ppm | -20 to +70 °C |
| Q22FA23V00310 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 20 pF | +/-30 ppm | -20 to +70 °C |
| Q22FA23V00314 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 10 pF | +/-50 ppm | -40 to +85 °C |
| Q22FA23V00326 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318180 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| Q22FA23V00327 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 12 pF | +/-20 ppm | -40 to +85 °C |
| Q22FA23V00332 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 18 pF | +/-30 ppm | -20 to +70 °C |
| Q22FA23V00358 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.000000 MHz | 7 pF | +/-30 ppm | -20 to +70 °C |
| Q22FA23V00367 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.318000 MHz | 9 pF | +/-50 ppm | -20 to +75 °C |
| Q22FA23V00372 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.288000 MHz | 18 pF | +/-20 ppm | -40 to +85 °C |
| Q22FA23V00373 | 3.2 x 2.5 x 0.7mm | FA-238V | 14.745600 MHz | 16 pF | +/-50 ppm | -40 to +85 °C |
| Q22FA23V00374 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.560000 MHz | 9 pF | +/-50 ppm | -20 to +70 °C |
| Q22FA23V00375 | 3.2 x 2.5 x 0.7mm | FA-238V | 12.800000 MHz | 15 pF | +/-10 ppm | -20 to +70 °C |
| Q22FA23V00379 | 3.2 x 2.5 x 0.7mm | FA-238V | 13.300000 MHz | 10 pF | +/-50 ppm | -20 to +70 °C |
