石英晶體振蕩器
- 編號：64273144
- 頻率：38.4MHz
- 尺寸：2016mm
Ecliptek美國晶振,EA1620MA08-38.400M TR低抖動晶振,EA1620平板電腦晶體
Ecliptek美國晶振,EA1620MA08-38.400MTR低抖動晶振,EA1620平板電腦晶體，美國Ecliptek晶振公司，高品質晶振，EA1620系列，EA1620MA08-38.400MTR晶振，電腦晶振，收音機晶振，通訊設備晶振，無源晶振，醫療設備晶振，電...
.jpg)
Ecliptek美國晶振,EA1620MA08-38.400M TR低抖動晶振,EA1620平板電腦晶體，美國Ecliptek晶振公司，高品質晶振，EA1620系列，EA1620MA08-38.400M TR晶振，電腦晶振，收音機晶振，通訊設備晶振，無源晶振，醫療設備晶振，電話機晶振，電腦晶振，智能手機晶振，藍牙設備晶振，高端晶振無源晶振，計算機晶振，智能家具。小體積晶振，美國晶振，歐美進口晶振，超小型晶振，石英晶振，胎壓檢測器晶振，小體積晶振，高品質晶振，微型晶振，高端晶振，低損耗晶振。
.jpg)
Ecliptek美國晶振,EA1620MA08-38.400M TR低抖動晶振,EA1620平板電腦晶體

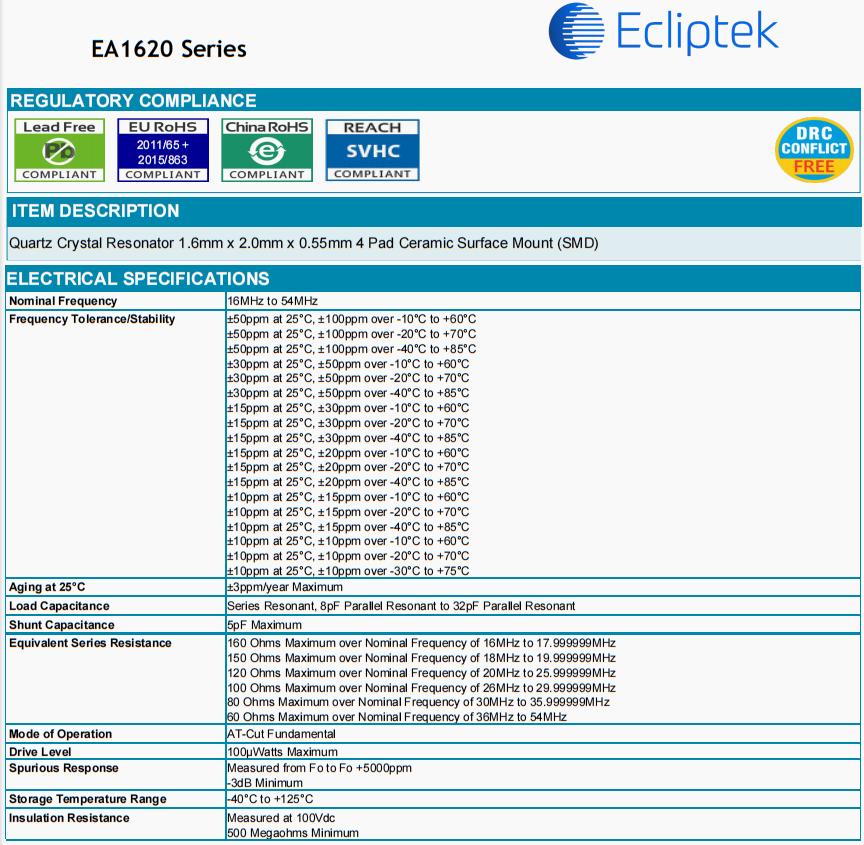

| 標稱頻率 | 16MHz to 54MHz |
| 老化 | ±3ppm/year Maximum |
| 負載電容 | Series Resonant, 8pF Parallel Resonant to 32pF Parallel Resonant |
| 分流電容 | 5pF Maximum |
| 等效串聯電阻 |
160 Ohms Maximum over Nominal Frequency of 16MHz to 17.999999MHz 150 Ohms Maximum over Nominal Frequency of 18MHz to 19.999999MHz 120 Ohms Maximum over Nominal Frequency of 20MHz to 25.999999MHz 100 Ohms Maximum over Nominal Frequency of 26MHz to 29.999999MHz 80 Ohms Maximum over Nominal Frequency of 30MHz to 35.999999MHz 60 Ohms Maximum over Nominal Frequency of 36MHz to 54MHz |
| 工作模式 | AT-Cut Fundamental |
| 驅動電平 | 100µWatts Maximum |
| 雜散響應 |
Measured from Fo to Fo +5000ppm -3dB Minimum |
| 儲存溫度范圍 | -40°C to +125°C |
| 絕緣電阻 |
Measured at 100Vdc 500 Megaohms Minimum |
Ecliptek美國晶振,EA1620MA08-38.400M TR低抖動晶振,EA1620平板電腦晶體
| 編碼 | 品牌 | 型號 | 工作溫度 | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 |
| E1SAA12-24.000M | Ecliptek | E1S | 0°C ~ 70°C | 24 MHz | ±100ppm | ±50ppm | 12 pF |
| E1SAA12-24.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 24 MHz | ±100ppm | ±50ppm | 12 pF |
| E1SAA12-30.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 30 MHz | ±100ppm | ±50ppm | 12 pF |
| E1SAA18-12.000M | Ecliptek | E1S | 0°C ~ 70°C | 12 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SAA18-16.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 16 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SAA18-24.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 24 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SAA18-25.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 25 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SAA20-5.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 5 MHz | ±100ppm | ±50ppm | 20 pF |
| E1SBA18-16.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 16 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SBA18-25.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 25 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SBA18-27.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 27 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SBA18-3.6864M TR | Ecliptek | E1S | -20°C ~ 70°C | 3.6864 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SBA18-7.3728M TR | Ecliptek | E1S | -20°C ~ 70°C | 7.3728 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SBA18-8.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 8 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SBA20-12.000M | Ecliptek | E1S | -20°C ~ 70°C | 12 MHz | ±100ppm | ±50ppm | 20 pF |
| E1SBA20-12.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 12 MHz | ±100ppm | ±50ppm | 20 pF |
| E1SCA12-24.000M | Ecliptek | E1S | -40°C ~ 85°C | 24 MHz | ±100ppm | ±50ppm | 12 pF |
| E1SCA12-3.6864M TR | Ecliptek | E1S | -40°C ~ 85°C | 3.6864 MHz | ±100ppm | ±50ppm | 12 pF |
| E1SCA18-14.7456M TR | Ecliptek | E1S | -40°C ~ 85°C | 14.7456 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SCA18-20.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 20 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SCA18-3.6864M TR | Ecliptek | E1S | -40°C ~ 85°C | 3.6864 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SCA18-4.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 4 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SCA18-7.3728M TR | Ecliptek | E1S | -40°C ~ 85°C | 7.3728 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SCA18-8.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 8 MHz | ±100ppm | ±50ppm | 18 pF |
| E1SCA32-12.000M | Ecliptek | E1S | -40°C ~ 85°C | 12 MHz | ±100ppm | ±50ppm | 32 pF |
| E1SDA12-25.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 25 MHz | ±50ppm | ±30ppm | 12 pF |
| E1SDA18-24.576M | Ecliptek | E1S | 0°C ~ 70°C | 24.576 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SDA18-25.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 25 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SEA18-12.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 12 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SEA18-25.000M | Ecliptek | E1S | -20°C ~ 70°C | 25 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SEA18-28.6363M TR | Ecliptek | E1S | -20°C ~ 70°C | 28.6363 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SEA18-3.6864M | Ecliptek | E1S | -20°C ~ 70°C | 3.6864 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SEA18-4.2944M TR | Ecliptek | E1S | -20°C ~ 70°C | 4.2944 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SEA20-25.000M | Ecliptek | E1S | -20°C ~ 70°C | 25 MHz | ±50ppm | ±30ppm | 20 pF |
| E1SEA20-4.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 4 MHz | ±50ppm | ±30ppm | 20 pF |
| E1SEA20-8.000M | Ecliptek | E1S | -20°C ~ 70°C | 8 MHz | ±50ppm | ±30ppm | 20 pF |
| E1SEA20-8.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 8 MHz | ±50ppm | ±30ppm | 20 pF |
| E1SEA40-8.704M TR | Ecliptek | E1S | -20°C ~ 70°C | 8.704 MHz | ±50ppm | ±30ppm | 40 pF |
| E1SFA12-3.6864M TR | Ecliptek | E1S | -40°C ~ 85°C | 3.6864 MHz | ±50ppm | ±30ppm | 12 pF |
| E1SFA16-6.290M TR | Ecliptek | E1S | -40°C ~ 85°C | 6.29 MHz | ±50ppm | ±30ppm | 16 pF |
| E1SFA18-12.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 12 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SFA18-14.31818M TR | Ecliptek | E1S | -40°C ~ 85°C | 14.31818 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SFA18-25.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 25 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SFA18-3.6864M | Ecliptek | E1S | -40°C ~ 85°C | 3.6864 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SFA18-7.3728M TR | Ecliptek | E1S | -40°C ~ 85°C | 7.3728 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SFA18-8.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 8 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SFA20-25.000M | Ecliptek | E1S | -40°C ~ 85°C | 25 MHz | ±50ppm | ±30ppm | 20 pF |
| E1SFAS-24.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 24 MHz | ±50ppm | ±30ppm | |
| E1SGA18-14.7456M TR | Ecliptek | E1S | 0°C ~ 70°C | 14.7456 MHz | ±30ppm | ±15ppm | 18 pF |
| E1SGA18-25.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 25 MHz | ±30ppm | ±15ppm | 18 pF |
| E1SHA10-29.950M TR | Ecliptek | E1S | -20°C ~ 70°C | 29.95 MHz | ±30ppm | ±15ppm | 10 pF |
| E1SHA20-25.000M TR | Ecliptek | E1S | -20°C ~ 70°C | 25 MHz | ±30ppm | ±15ppm | 20 pF |
| E1SJA16-14.31818M | Ecliptek | E1S | -40°C ~ 85°C | 14.31818 MHz | ±30ppm | ±15ppm | 16 pF |
| E1SJA18-24.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 24 MHz | ±30ppm | ±15ppm | 18 pF |
| E1SJA18-25.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 25 MHz | ±30ppm | ±15ppm | 18 pF |
| E1SJA18-4.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 4 MHz | ±30ppm | ±15ppm | 18 pF |
| E1SJA20-25.000M | Ecliptek | E1S | -40°C ~ 85°C | 25 MHz | ±30ppm | ±15ppm | 20 pF |
| E1SMA14-25.000M | Ecliptek | E1S | -40°C ~ 85°C | 25 MHz | ±20ppm | ±15ppm | 14 pF |
| E1SMA18-25.000M | Ecliptek | E1S | -40°C ~ 85°C | 25 MHz | ±20ppm | ±15ppm | 18 pF |
| E1SMA18-27.000M | Ecliptek | E1S | -40°C ~ 85°C | 27 MHz | ±20ppm | ±15ppm | 18 pF |
| E1SMA18-27.000M TR | Ecliptek | E1S | -40°C ~ 85°C | 27 MHz | ±20ppm | ±15ppm | 18 pF |
| E1SNA16-25.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 25 MHz | ±15ppm | ±10ppm | 16 pF |
| E1SNA18-25.000M TR | Ecliptek | E1S | 0°C ~ 70°C | 25 MHz | ±15ppm | ±10ppm | 18 pF |
| E1SSA18-5.000M TR | Ecliptek | E1S | -40°C ~ 105°C | 5 MHz | ±50ppm | ±30ppm | 18 pF |
| E1SSA20-10.000M | Ecliptek | E1S | -40°C ~ 105°C | 10 MHz | ±50ppm | ±30ppm | 20 pF |
| E1SSA20-10.000M TR | Ecliptek | E1S | -40°C ~ 105°C | 10 MHz | ±50ppm | ±30ppm | 18 pF |
| E1WSDA12-32.768K | Ecliptek | E1WS | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| E1WSDA12-32.768K TR | Ecliptek | E1WS | -40°C ~ 85°C | 32.768 kHz | ±20ppm | 12.5 pF | |
| EA1216MA08-25.000M TR | Ecliptek | EA1216 | -40°C ~ 85°C | 25 MHz | ±20ppm | ±15ppm | 8 pF |
| EA1620MA10-25.000M TR | Ecliptek | EA1620 | -40°C ~ 85°C | 25 MHz | ±20ppm | ±15ppm | 10 pF |
| EA3560LA20-25.000M TR | Ecliptek | EA3560 | -20°C ~ 70°C | 25 MHz | ±20ppm | ±15ppm | 20 pF |
| EA5070CA12-24.000M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 24 MHz | ±100ppm | ±50ppm | 12 pF |
| EA5070CA18-20.000M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 20 MHz | ±100ppm | ±50ppm | 18 pF |
| EA5070CAS-8.000M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 8 MHz | ±100ppm | ±50ppm | 8 pF |
| EA5070FA16-22.5792M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 22.5792 MHz | ±50ppm | ±30ppm | 16 pF |
| EA5070FA18-10.000M | Ecliptek | EA5070 | -40°C ~ 85°C | 10 MHz | ±50ppm | ±30ppm | 18 pF |
| EA5070FA18-14.31818M | Ecliptek | EA5070 | -40°C ~ 85°C | 14.31818 MHz | ±50ppm | ±30ppm | 18 pF |
| EA5070FA18-24.000M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 24 MHz | ±50ppm | ±30ppm | 18 pF |
| EA5070FA18-25.000M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 25 MHz | ±50ppm | ±30ppm | 18 pF |
| EA5070FA18-27.000M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 27 MHz | ±50ppm | ±30ppm | 18 pF |
| EA5070FA20-7.3728M | Ecliptek | EA5070 | -40°C ~ 85°C | 7.3728 MHz | ±50ppm | ±30ppm | 20 pF |
| EA5070GA18-25.000625M | Ecliptek | EA5070 | 0°C ~ 70°C | 25.000625 MHz | ±30ppm | ±15ppm | 18 pF |
| EA5070GA18-25.000625M TR | Ecliptek | EA5070 | 0°C ~ 70°C | 25.000625 MHz | ±30ppm | ±15ppm | 18 pF |
| EA5070GA20-7.3728M | Ecliptek | EA5070 | 0°C ~ 70°C | 7.3728 MHz | ±30ppm | ±15ppm | 20 pF |
| EA5070JA18-25.000625M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 25.000625 MHz | ±30ppm | ±15ppm | 18 pF |
| EA5070JA20-14.31818M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 14.31818 MHz | ±30ppm | ±15ppm | 20 pF |
| EA5070JA20-6.000M TR | Ecliptek | EA5070 | -40°C ~ 85°C | 6 MHz | ±30ppm | ±15ppm | 20 pF |
| EA5070PA20-8.000M | Ecliptek | EA5070 | -20°C ~ 70°C | 8 MHz | ±15ppm | ±10ppm | 20 pF |
| EB2025YA10-25.000M TR | Ecliptek | EB2025 | -40°C ~ 125°C | 25 MHz | ±50ppm | ±30ppm | 10 pF |
| EB3250AYA08-25.000M TR | Ecliptek | EB3250A | -40°C ~ 125°C | 25 MHz | ±50ppm | ±30ppm | 8 pF |
| EB8WSDX12-32.768K TR | Ecliptek | EB8WS | -40°C ~ 125°C | 32.768 kHz | ±20ppm | 12.5 pF |
