- 編號：15735007
- 頻率：26.000MHz
- 尺寸：1.6x1.2mm
艾爾1612mm晶振,ELM12W-26.000MHz-10-R120-D2X-T3,無線晶振
艾爾1612mm晶振,ELM12W-26.000MHz-10-R120-D2X-T3,無線晶振，英國進口晶振，AEL艾爾晶振，型號：ELM12W晶振，編碼為：ELM12W-26.000MHz-10-R120-D2X-T3，頻率為：26.000MHz，小體積晶振尺寸：1.6x1.2mm封裝，四腳貼片...
艾爾1612mm晶振,ELM12W-26.000MHz-10-R120-D2X-T3,無線晶振，英國進口晶振，AEL艾爾晶振，型號：ELM12W晶振，編碼為：ELM12W-26.000MHz-10-R120-D2X-T3，頻率為：26.000MHz，小體積晶振尺寸：1.6x1.2mm封裝，四腳貼片晶振，石英晶體諧振器，SMD石英晶體，石英晶振，無源晶振，無鉛環保晶振，工作溫度范圍：-40℃至+85℃。具有超小型，輕薄型，高精度，高性能，高品質，耐熱及耐環境等特點。被廣泛應用于：通訊設備，無線網絡，藍牙模塊，可穿戴設備，小型便捷式設備，汽車電子，手機晶振，平板電腦，智能家居，游戲機設備，遙控器晶振，安防設備等應用。
艾爾1612mm晶振,ELM12W-26.000MHz-10-R120-D2X-T3,無線晶振,參數表
| STANDARD SPECIFICATIONS | ||||||||||||||
| PARAMETERS | MAX (Unless otherwise noted) | |||||||||||||
| Frequency Range | 26.000MHz | |||||||||||||
| Operation Mode | Fundamental | |||||||||||||
| Operating Temperature Range | -40°C to +125°C, see options | |||||||||||||
| Storage Temperature | -55°C to +125°C | |||||||||||||
| Frequency Tolerance @ 25°C | ± 10PPM, see options | |||||||||||||
|
Frequency Stability over the Operating Temperature (ref. to +25°C) |
± 10PPM, see options | |||||||||||||
|
Equivalent Series Resistance “R1” (over operating temperature range) (CL=4pF) 24.000 ≤ F < 31.999 (Fund) 32.000 ≤ F < 36.999 (Fund) 37.000 ≤ F < 52.000 (Fund) |
<90Ω typ, 150Ω <80Ω typ, 100Ω <60Ω typ, 80Ω |
|||||||||||||
|
Equivalent Series Resistance “R1” (over operating temperature range) (CL=6pF, 7pF, 8pF) 24.000 ≤ F < 31.999 (Fund) 32.000 ≤ F < 36.999 (Fund) 37.000 ≤ F < 52.000 (Fund) |
<80Ω typ, 100Ω <60Ω typ, 80Ω <35Ω typ, 50Ω |
|||||||||||||
| Shunt Capacitance (C0) | <1 typ, 2.0 pF | |||||||||||||
| Load Capacitance (CL) | 4.0 pF, see options | |||||||||||||
| Drive Level |
10 μW typ 100 μW |
|||||||||||||
| Aging (@25°C±3°C First year) | ±2ppm | |||||||||||||
| Insulation Resistance@ 100Vdc ± 15V | 500 MOhms | |||||||||||||
| RoHS Compliant | Yes | |||||||||||||
| Pb Free | Yes | |||||||||||||
| MSL | N/A | |||||||||||||

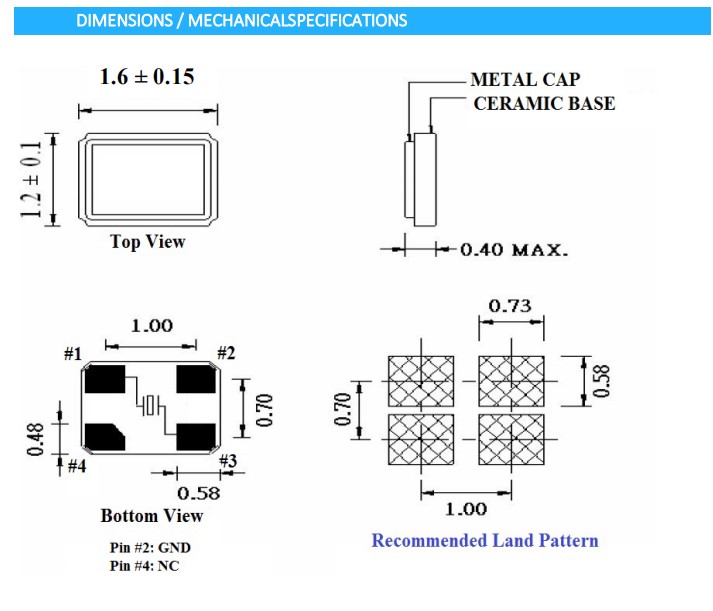

艾爾1612mm晶振,ELM12W-26.000MHz-10-R120-D2X-T3,無線晶振,尺寸圖
艾爾1612mm晶振,ELM12W-26.000MHz-10-R120-D2X-T3,無線晶振
產品特點：
SMD石英晶體諧振器
公差：±10ppm可用
工作溫度0°C至+50°C至-40°C至+85°C
| 產品編碼 | 艾爾晶振 | 頻率 | 長度 | 寬度 | 高度 |
| ELLS-10.000MHz-20-R60-J-Q-F-T | AEL晶振 | 10 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-12.000MHz-18-R60-A-4-F-T | AEL晶振 | 12 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-13.560MHz-10-R35-A4Y-F-T | AEL晶振 | 13.56 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-30.000MHz-10-R50-B1U-F-T | AEL晶振 | 30 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-16-R120-A4-F-T | AEL晶振 | 4 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-16-R120-B1X-F-T | AEL晶振 | 4 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-4.000MHz-30-R120-D4-F-T | AEL晶振 | 4 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELLS-8.000MHz-16-R45-D4-F-T | AEL晶振 | 8 MHz | 12.3mm | 4.6mm | 4.3mm |
| ELM10-16.000MHz-8-R60-2-D20-T | AEL晶振 | 16 MHz | 2.5mm | 2mm | 0.5mm |
| ELM10-24.000MHz-16-R100-X-N15-T | AEL晶振 | 24 MHz | 2.5mm | 2mm | 0.5mm |
| ELM11-32.000MHz-10-R60-D1X-T | AEL晶振 | 32 MHz | 2mm | 1.6mm | 0.5mm |
| ELM3-12.000MHz-30-R80-D4Y-T | AEL晶振 | 12 MHz | 5mm | 3.2mm | 1mm |
| ELM3-14.000MHz-30-R80-D4H-T | AEL晶振 | 14 MHz | 5mm | 3.2mm | 1mm |
| ELM3-24.000MHz-18-R40-D4H-T | AEL晶振 | 24 MHz | 5mm | 3.2mm | 1mm |
| ELM3-8.057MHz-18-R100-B4Y-T | AEL晶振 | 8.057 MHz | 5mm | 3.2mm | 1mm |
| ELM8-12.000MHz-10-R50-D4Y-T | AEL晶振 | 12 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-12.5829MHz-16-R60-1U-T | AEL晶振 | 12.5829 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-14.000MHz-16-R150-B1U-T | 進口晶振 | 14.8 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-18.432MHz-16-R80-DQ-T | AEL晶振 | 18.432 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-10-R60-D1W-T | AEL晶振 | 24 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-18-R60-B1W-T | AEL晶振 | 24 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-24.000MHz-9-R40-N1U-T | AEL晶振 | 24 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-26.000MHz-18-R60-B1U-T | AEL晶振 | 26 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-32.000MHz-16-R40-B1U-T | AEL晶振 | 32 MHz | 3mm | 2.5mm | 0.6mm |
| ELM8-32.000MHz-9-R40-D1G-T | AEL晶振 | 32 MHz | 3mm | 2.5mm | 0.6mm |
| ELS07-32.768kHz-6-T | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
| ELS07-32.768kHz-T | AEL晶振 | 32.768 kHz | 3.2mm | 1.5mm | 0.75mm |
| ELS13-32.768kHz-7-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-7-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-9-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS13-32.768kHz-T | AEL晶振 | 32.768 kHz | 7mm | 1.5mm | 1.4mm |
| ELS25-32.768kHz-6-2-T | AEL晶振 | 32.768 kHz | 8mm | 3.8mm | 2.4mm |
| ELS25-32.768kHz-T | AEL晶振 | 32.768 kHz | 8mm | 3.8mm | 2.4mm |
| ELS25-32.768kHz-T | AEL晶振 | 32.768 kHz | 8mm | 3.8mm | 2.4mm |
| ELS06-32.768kHz-9-T | AEL晶振 | 32.768 kHz | 2mm | 1.2mm | 0.6mm |
| ELS05-32.768kHz-9-T | AEL晶振 | 32.768 kHz | 1.6mm | 1mm | 0.5mm |
| ELM12W-24.000MHz-6-R120-D7X-T | AEL晶振 | 24 MHz | 1.6mm | 1.2mm | 0.4mm |
